歡迎來到東莞市冠瑞機械有限公司
當前位置: 首頁 >> 其它PCB設備

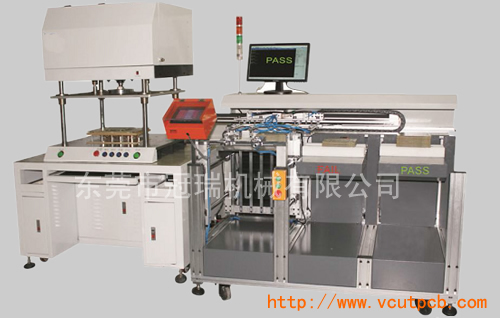

測試全自動收放板機A型

產品名稱:測試全自動收放板機A型

  • 咨詢熱線:13829289581 (李先生)
  • 產品詳情

 產品特點:

  結合現有的手動測試機結構研發的一款經濟實用、高速結構簡單、易于維護的一款測試機全自動收放板機。機械手臂自動傳送方式,更適合不規則外形PCB測試,手臂式放板,更穩定,更適合大批量、高密度PCB測試,結合高效的測試系統,效率更高。此機專為實現自動化測試面設計,節約人工成本,消除人為誤放,增加測試可靠性,是PCB廠家生產優化的最佳方案
Characteristic:
Combined with the existing manual testing machine structure research and development of an economic and practical, high speed of simple structure,
easy maintenance, a fully automatic testing machine. Mechanical arm automatic transmission way, more suitable for irregular shape of PCB testing,
arm type plate, more stable, more suitable for large quantity, high density PCB test, combined with efficient testing system, is more efficient. This
machine is specially designed for automated testing, save labor costs,eliminating human misplacement, increase the reliability test, is the best
solution for PCB manufacturer production optimization.

產品優點:

1、傳統手動測試機,加裝直接升級成自動化測試機,兼容市場上常用手動測試機;
2、完美代替人工測試,機械準確放板、杜絕人工放板錯誤,不良板流出;
3、測試效率更高,每小時可測試800-1000 PCS,一個人可同時看管4臺設備;
4、進口伺服電機配合進口PLC,性能穩定,品質有保障;后續維護費用低;
5、手臂使用臺灣上銀直線導軌,質量過硬,噪音小;
6、四吸盤吸板架構,真空開關吸板監控,收放板更加平穩;
7、PASS板疊板計數,自動計算好板數量, FAIL板自動區分開/斷路板功能,提高 檢修/測試部門效率;
8、人機全中文操作界面,功能完善,易于上手
9、手臂快速微調,調試自動機械手臂只需要10-15分鐘;
10、整體占用空間小,節省車間空間,提高利用率。




Characteristic:
Combined with the existing manual testing machine structure research and development of an economic and practical, high speed of simple structure,easy maintenance, a fully automatic testing machine. Mechanical arm automatic transmission way, more suitable for irregular shape of PCB testing,arm type plate, more stable, more suitable for large quantity, high density PCB test, combined with efficient testing system, is more efficient. This machine is specially designed for automated testing, save labor costs,eliminating human misplacement, increase the reliability test, is the best solution for PCB manufacturer production optimization.





A型

結構(structure)

精密絲桿

測試面積(test size)

15.6〞×12.5〞

控制系統(control system)

智能人機界面

測試電壓(test voltage)

50V-300V

送板收板速度

≤2.5S

測試效率(test speed)

800-1000pcs/h

待測板堆板高度

(thickness of waiting boards)

300mm

PASS板堆板高度

(thickness of pass boards)

300mm

FAIL板堆板高度

(thickness of fail boards)

300mm

尺寸

1600×1100×900mm

電源供應(power supply) AC

AC 220V

壓縮空氣供應

(copressed air supply)

6-8kg·f/cm2

環境溫度(temperature)

18℃-25℃

環境濕度(humidity)

<60%(非凝結)

重量

700KG

不良打印標簽放置

(Bad print label placement)

可選
